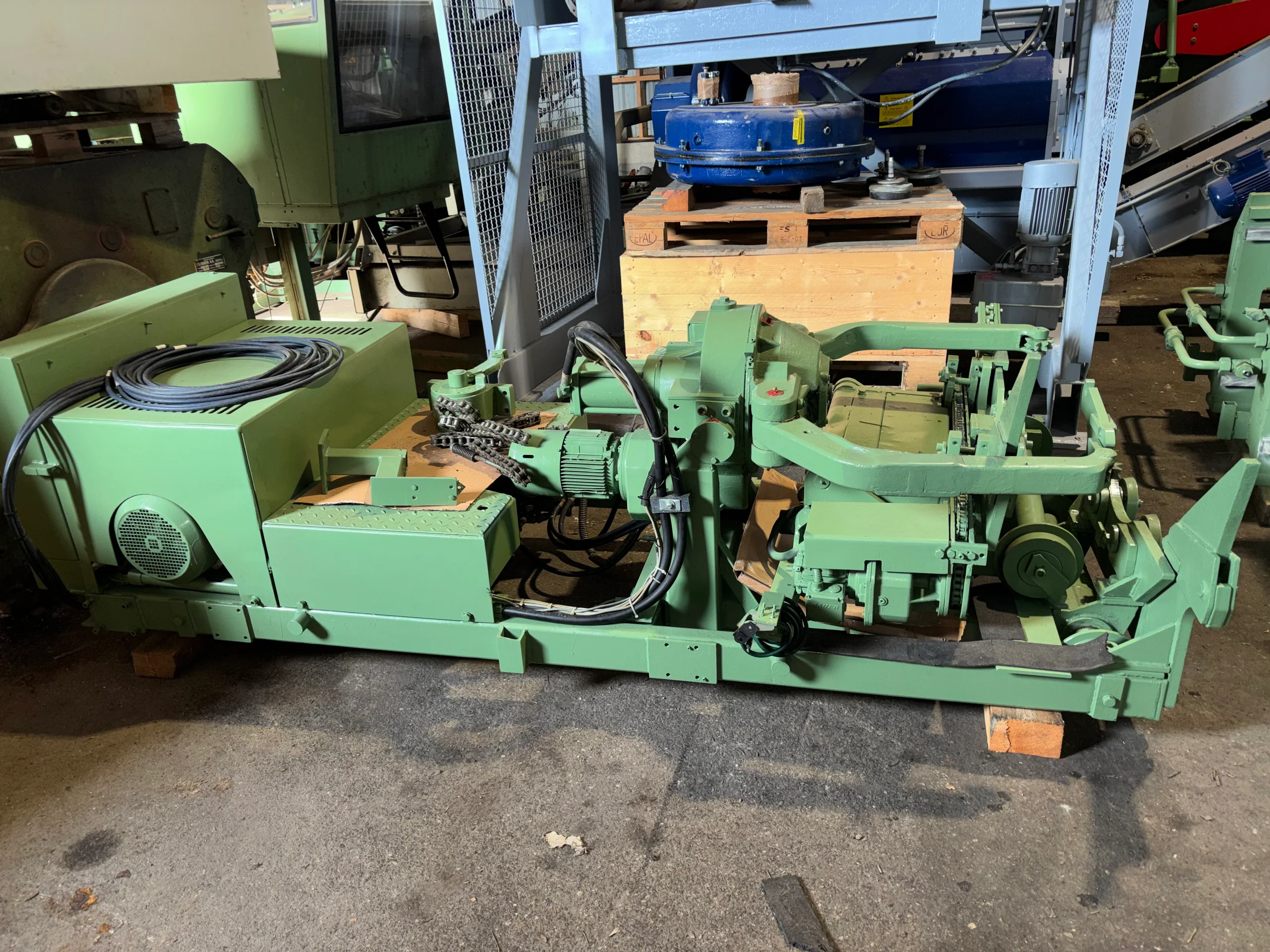

EWD EHS-F

Area of application

Automatic feeding of saw frames with logs

Load capacity

5 - 8 tons, depending on log diameter

Conveying length

10 m (standard), adaptable to fence length

Conveying speed

0.1 - 0.4 m/s, infinitely variable

Permitted log diameter

Ø 200 - 800 mm

Drive & control

Electro-hydraulic (400 V / 50 Hz), hydraulic pump ~ 25 l/min at approx. 160 bar, relay-controlled control (PLC retrofit possible)

Clamping system & mechanics

Hydraulic grippers (replaceable jaws), precision rail guide with steel wheels

Dimensions & dead weight

Length approx. 12 m incl. driving area, width approx. 2.5 m, tare weight ~4 tons

Special features

Robust design for continuous operation, suitable for traditional gate systems; low maintenance thanks to proven components
